Moulded parts

Waterstops and moulded parts are used to form closed waterstop systems for sealing and waterproofing of concrete structures. These waterstop systems can be extensive and can consist of complicated connections. At the same time, they can also be composed of different types of waterstops. Prefabrication in the factory reduces the number of connections required on-site to a minimum.

In accordance with DIN 18197, only welding of butt joints is permitted on site. All other connections must be made at the factory.

We manufacture complete waterstop systems according to customer specifications and drawings.



Examples of waterstop systems:

Beispielsystem

Moulded parts: external waterstops, without central tube

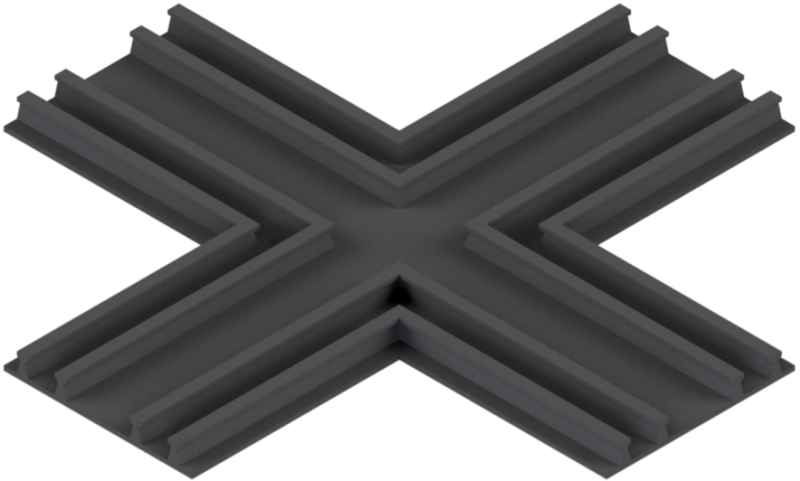

F1 - flat cruciform

F2 - flat T-piece

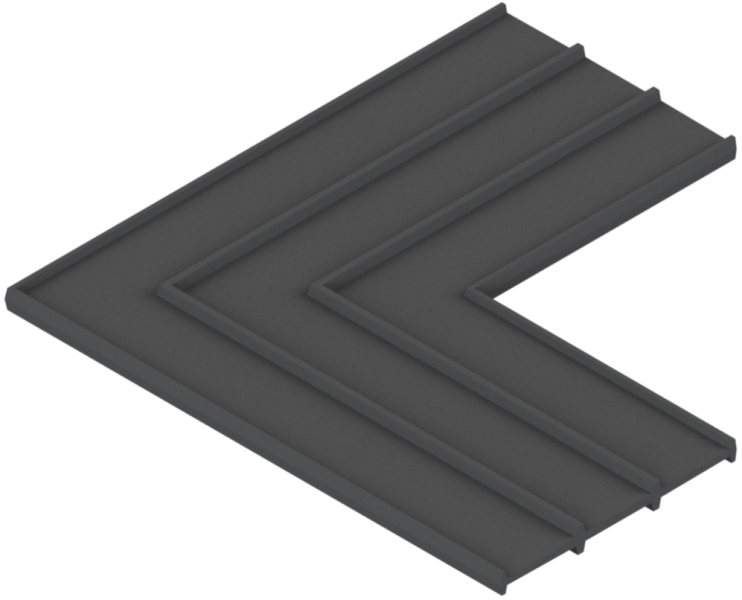

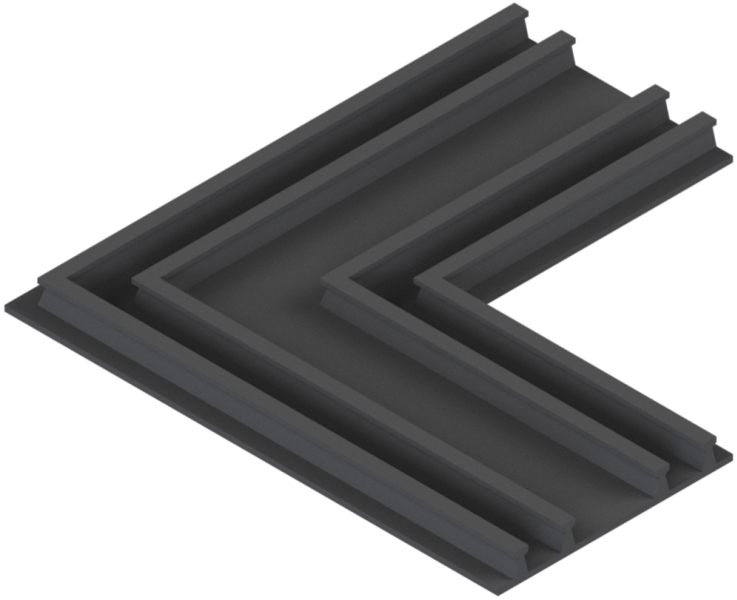

F3 - flat angle

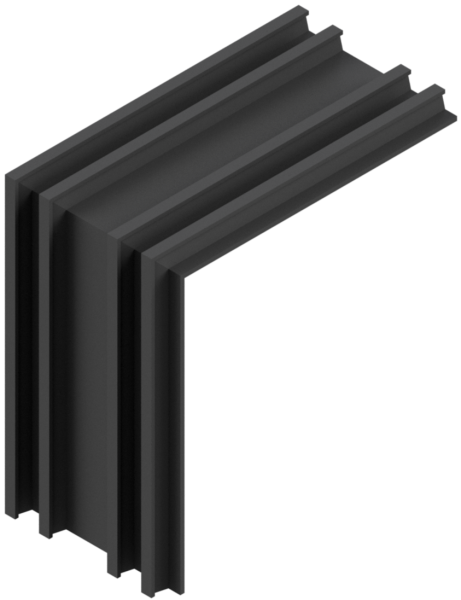

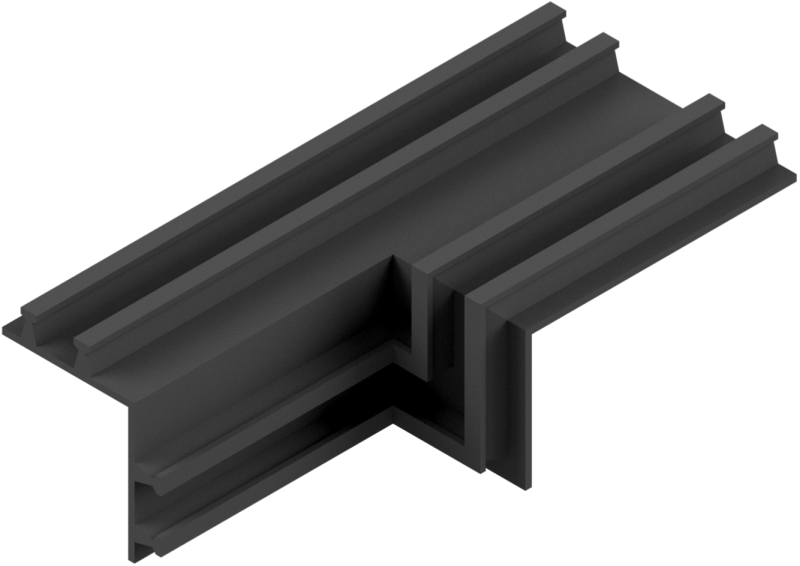

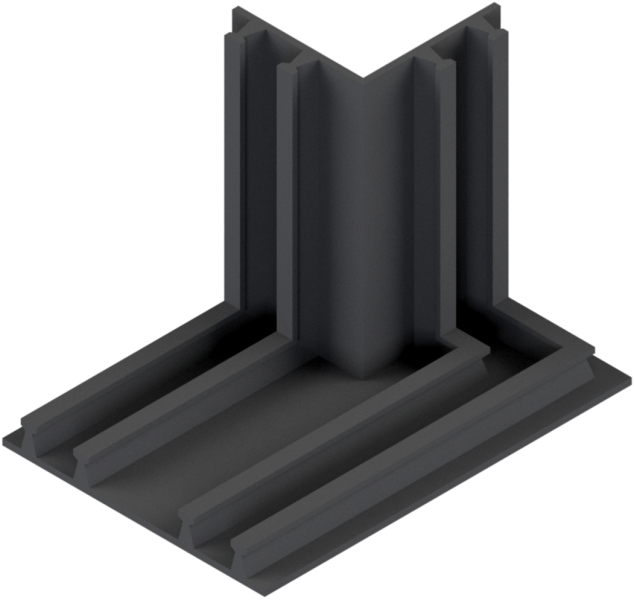

F6a - vertical angle, stop anchors outside

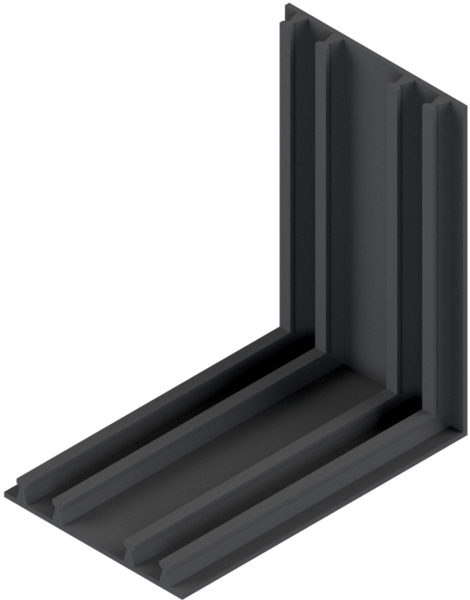

F6i - vertical angle, stop anchors inside

These moulded parts also apply to external waterstops with a central tube.

Moulded parts: internal waterstops, without central tube

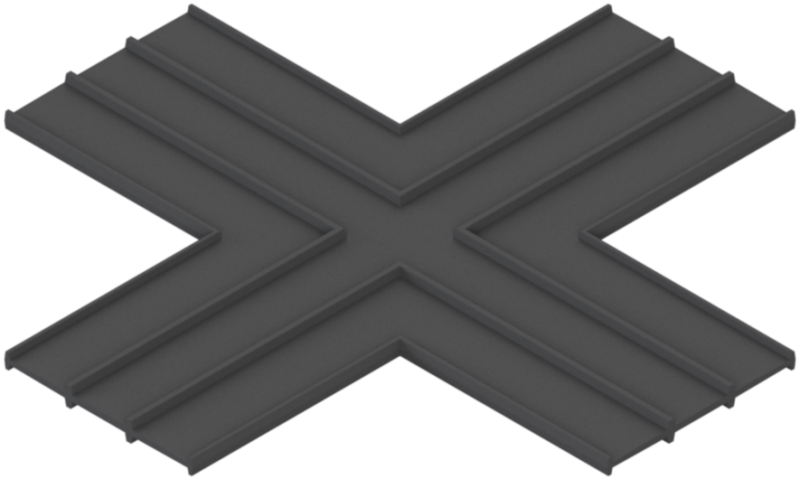

F1 - flat cruciform

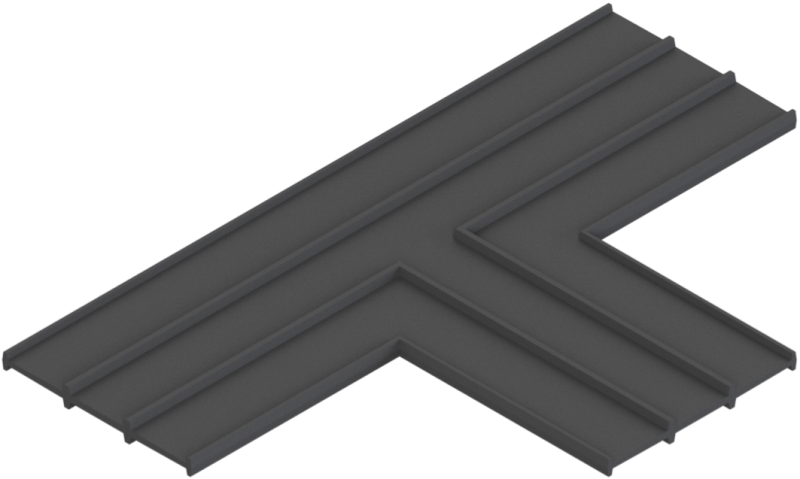

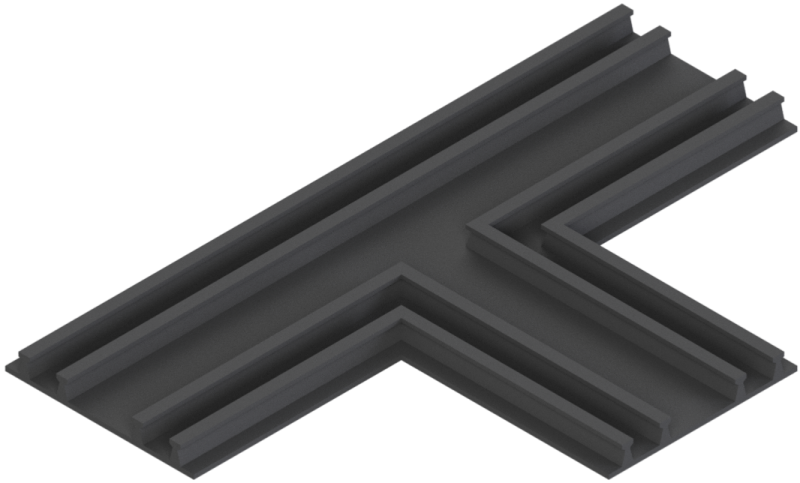

F2 - flat T-piece

F3 - flat angle

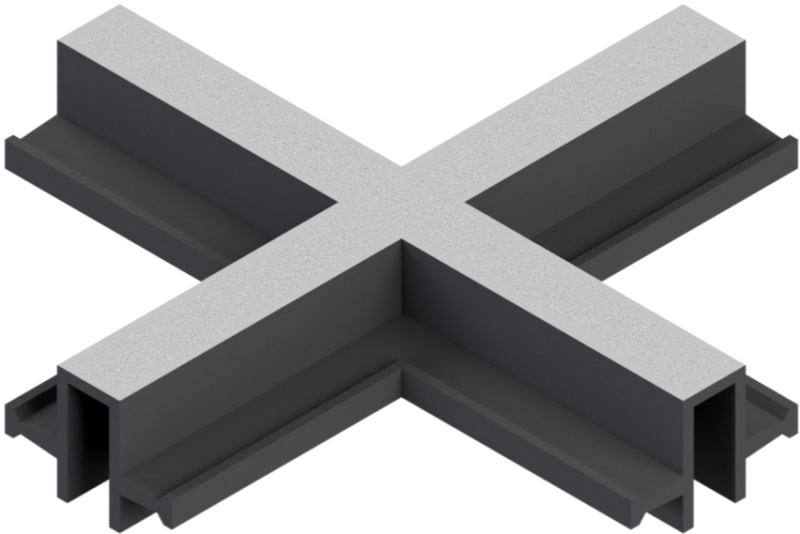

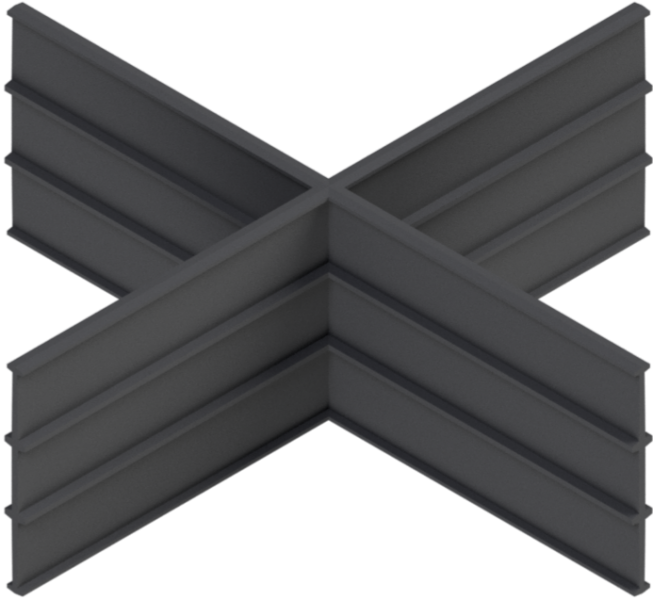

F4 - vertical cruciform

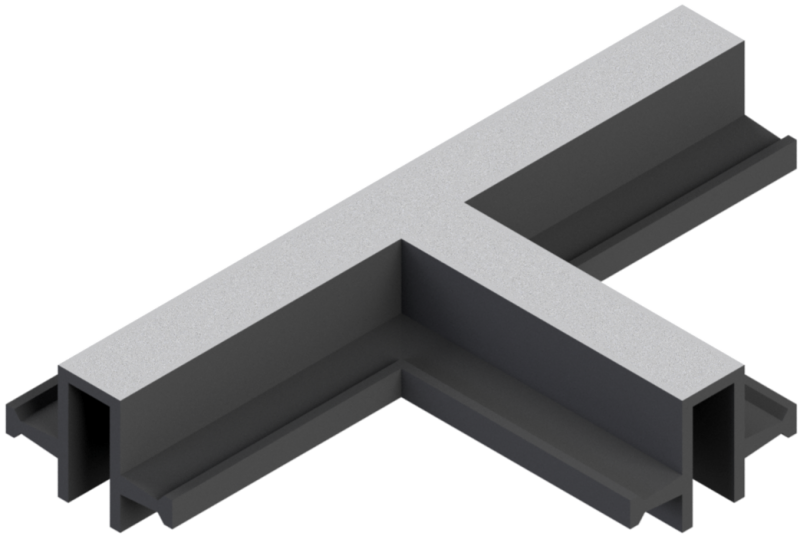

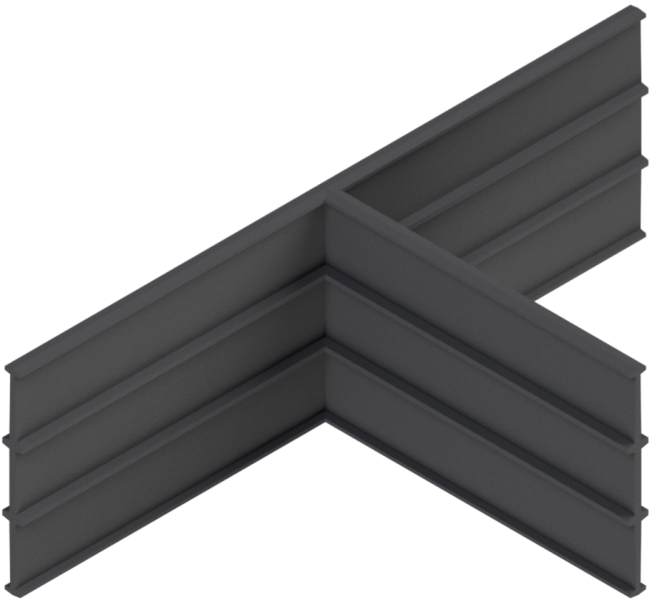

F5 - vertical T-piece

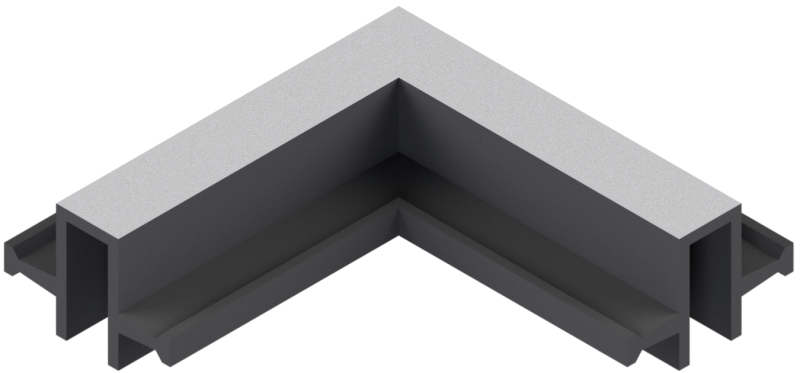

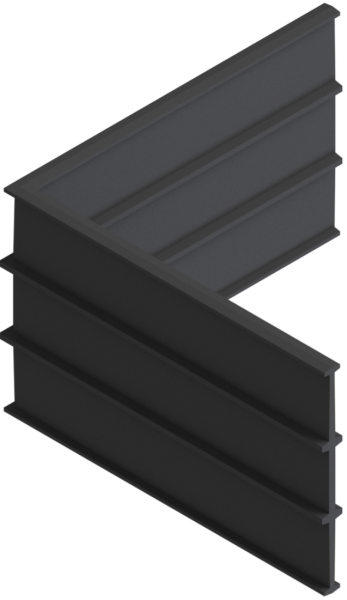

F6 - vertical angle

These moulded parts also apply to external waterstops with a central tube.

Moulded parts: Capping joint waterstops

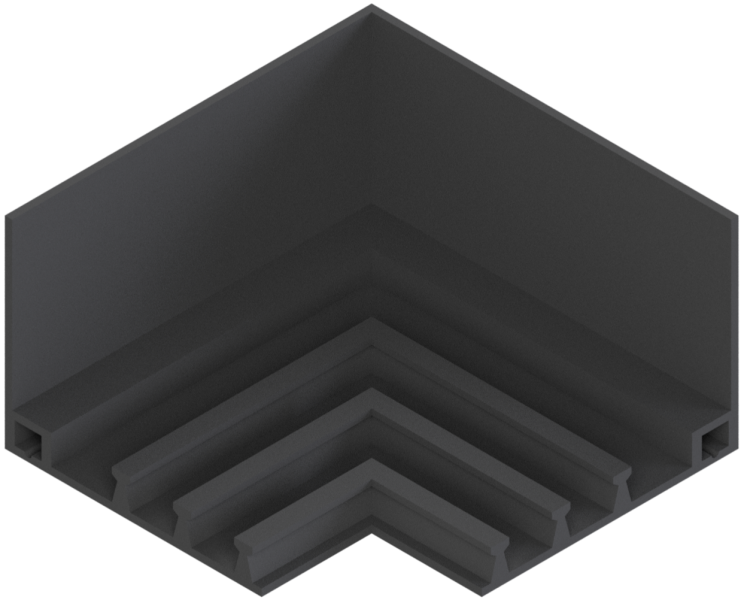

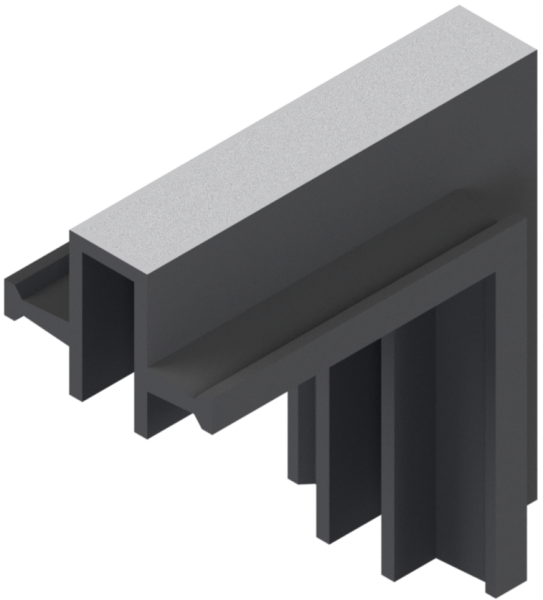

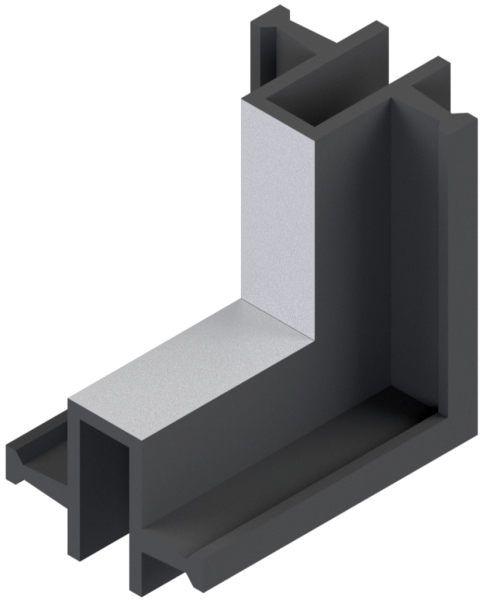

F1 - flat angle, visible surface inside

F2 - flat angle, visible surface outside

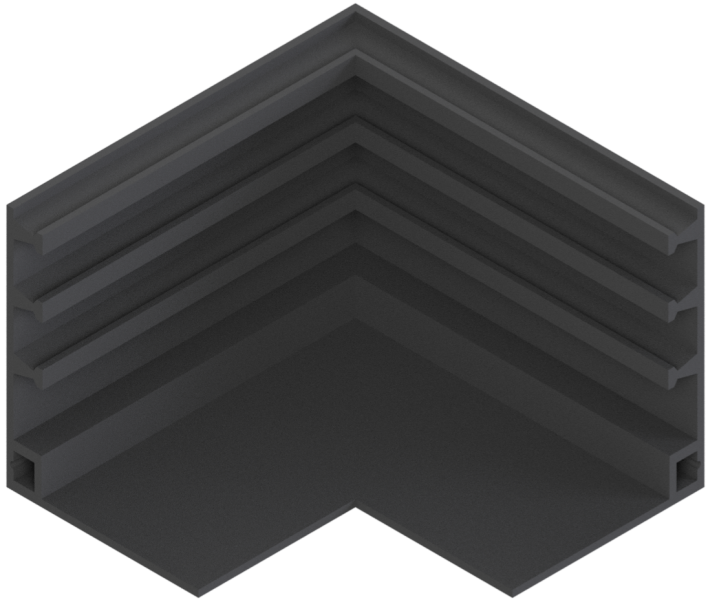

F3 - vertical angle

F4 - vertical cruciform

F5 - vertical T-piece

Moulded parts: Clamped waterstops

vertical surface angle

flat surface angle

flat surface angle

vertical elbow

flat elbow

Moulded parts: special connections

external expansion waterstop, with central tube

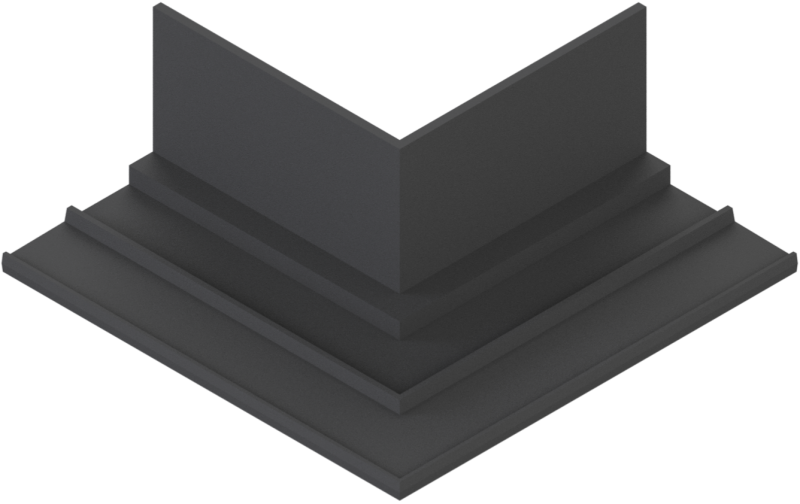

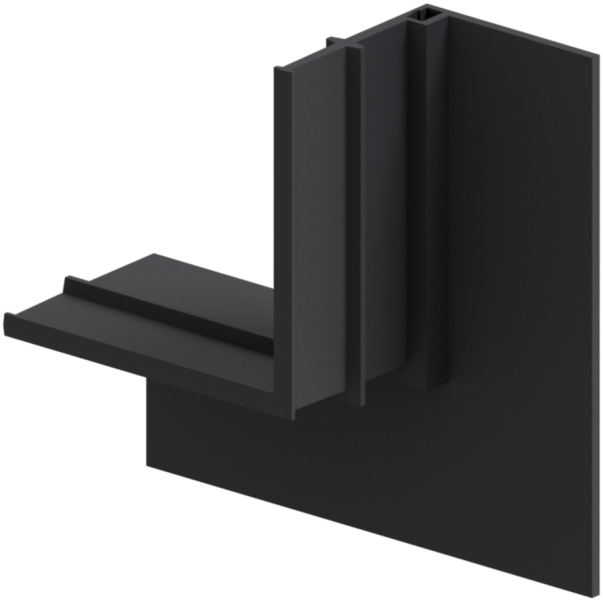

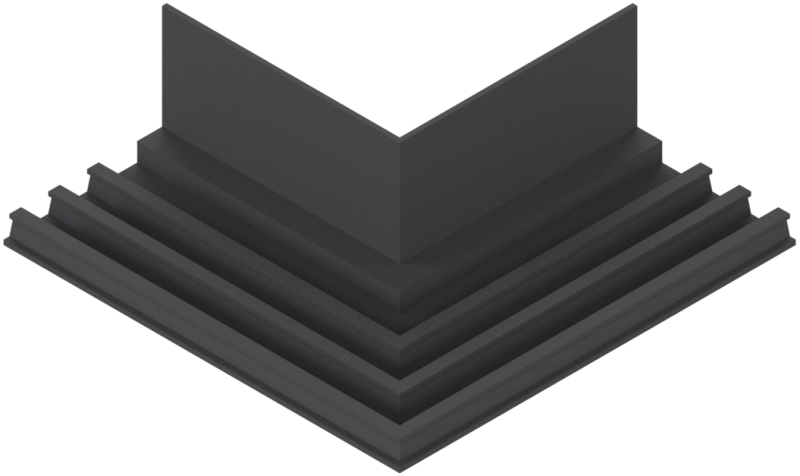

blend corner

external construction waterstop, without central tube

blend corner

external expansion waterstop, with central tube

blend corner

external construction waterstop, without central tube

blend corner

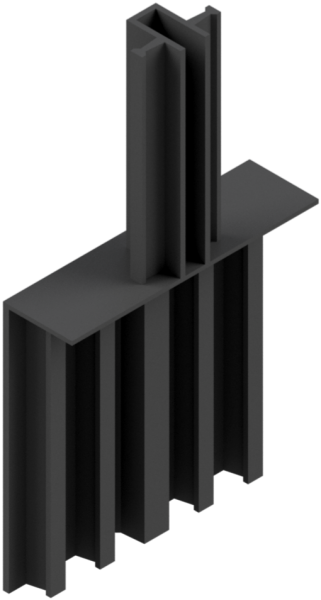

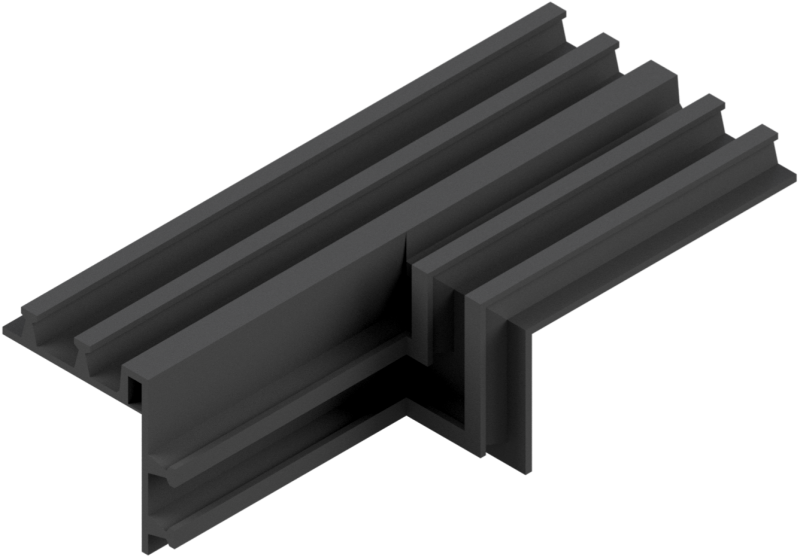

external expansion waterstop & capping joint waterstop

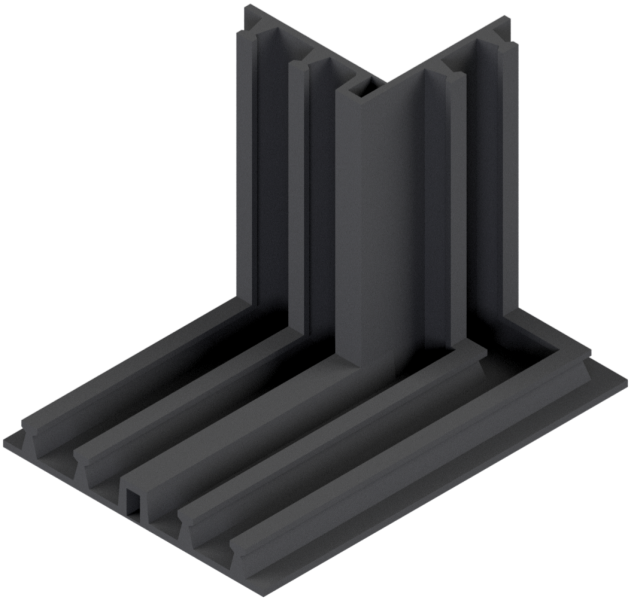

AM vulcanized with FAE

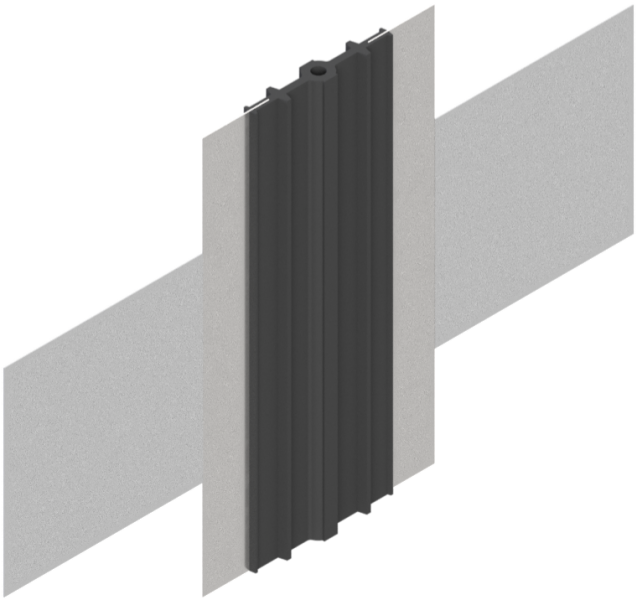

internal expansion waterstop with welded joint plates

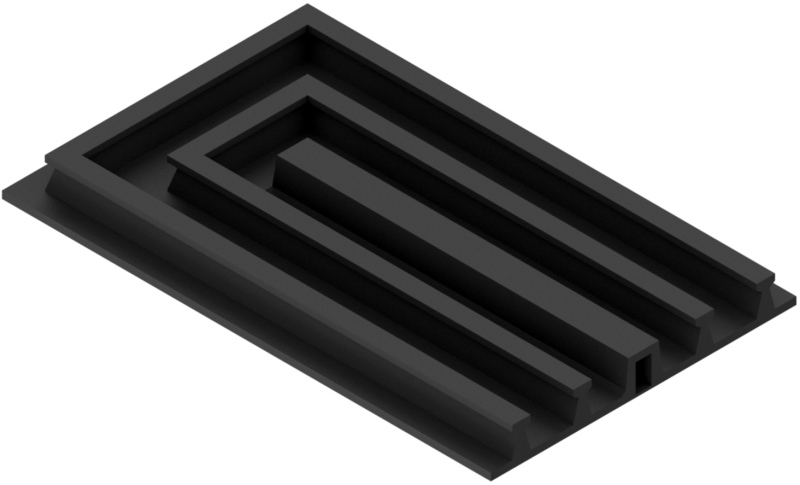

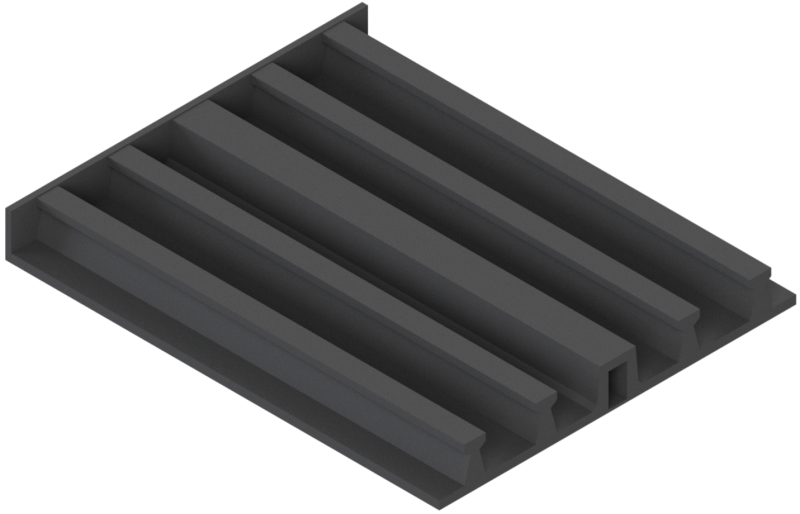

waterstop locking mechanism

waterstop fastener
