Weld-on waterstops in accordance with factory standard

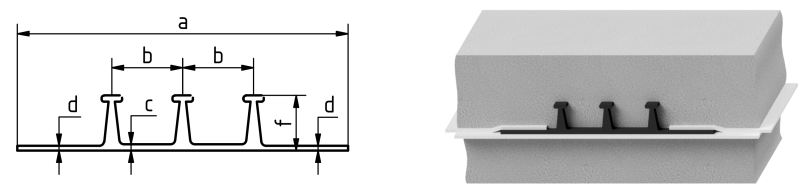

SAA 210-3
Product a (mm) b (mm) c (mm) d (mm) f (mm) qty. stop anchors Material
SAA 210-3 210 45 4 3 35 3 -

for construction joints

Data sheets

Further information can be found in the accompanying data sheets:
deutsch
english

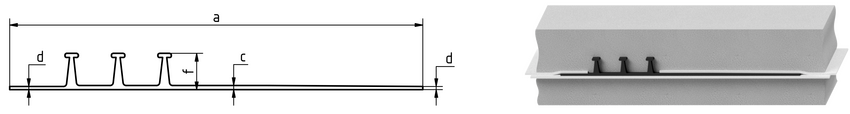

SAA 400-3
Product a (mm) c (mm) d (mm) f (mm) qty. stop anchors Material
SAA 400-3 400 4 3 35 3 -

for construction joints

Data sheets

Further information can be found in the accompanying data sheets:
deutsch
english

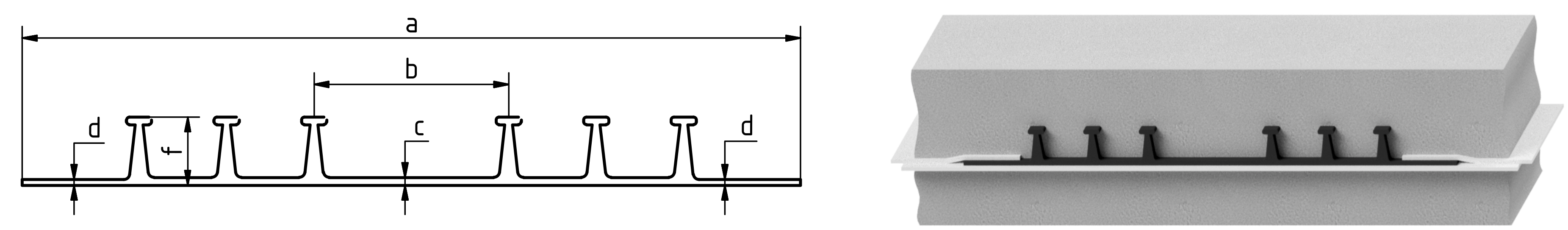

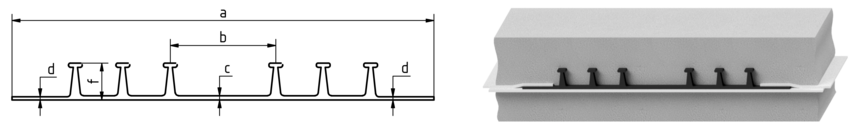

Series SAA -6
Product a (mm) b (mm) c (mm) d (mm) f (mm) qty. stop anchors Material
SAA 400-6 400 100 4 3 35 6 -
SAA 500-6 500 180 4 3 35 6 -
SAA 600-6 600 280 4 3 35 6 -

for construction joints

Data sheets

Further information can be found in the accompanying data sheets:
deutsch
english

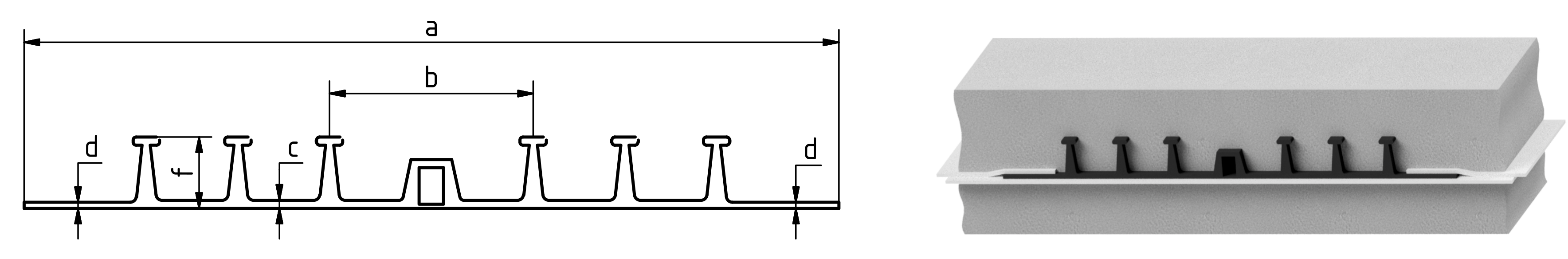

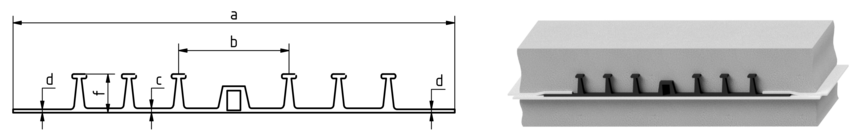

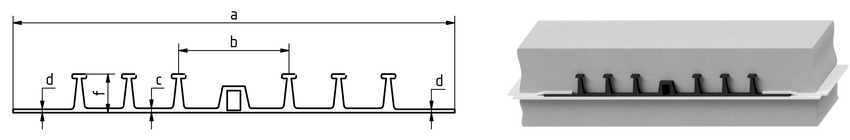

Series SDA -6
Product a (mm) b (mm) c (mm) d (mm) f (mm) qty. stop anchors Material
SDA 400-6 400 100 4 3 35 6 -
SDA 500-6 500 180 4 3 35 6 -
SDA 600-6 600 280 4 3 35 6 -

for expansion joints

Data sheets

Further information can be found in the accompanying data sheets:
deutsch
english
