Clamped waterstops in accordance with DIN 18541

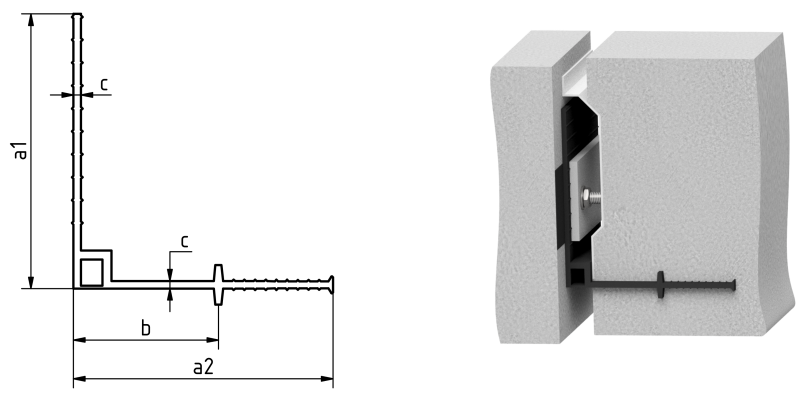

Series D K DIN

Waterstop selection in accordance with DIN 18197

Product a1 (mm) a2 (mm) b (mm) c (mm) qty. stop anchors Material
D 320 K DIN 180 170 95 5 - PVC-P / PVC-NBR



Data sheets

Further information can be found in the accompanying data sheets:
deutsch
english

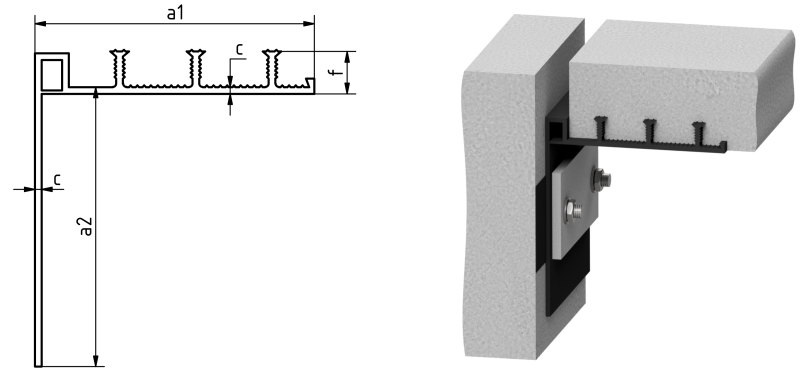

Series DA KA DIN

Waterstop selection in accordance with DIN 18197

Product a1 (mm) a2 (mm) c (mm) f (mm) qty. stop anchors Material
DA 320 KA DIN 165 165 4 25 3 PVC-P / PVC-NBR



Data sheets

Further information can be found in the accompanying data sheets:
deutsch
english



Series DA KF DIN

Waterstop selection in accordance with DIN 18197

Product a (mm) c (mm) f (mm) qty. stop anchors Material
DA 320 KF DIN 320 4 25 3 PVC-P / PVC-NBR



Data sheets

Further information can be found in the accompanying data sheets:
deutsch
english



Series DA KF2 DIN

Waterstop selection in accordance with DIN 18197

Product a (mm) c (mm) qty. stop anchors Material
DA 320 KF2 DIN 320 4 - PVC-P / PVC-NBR



Data sheets

Further information can be found in the accompanying data sheets:
deutsch
english

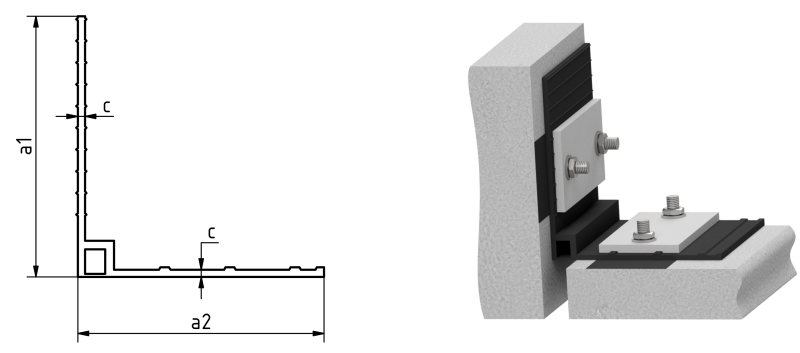

Serie DA KF2 corner DIN

Waterstop selection in accordance with DIN 18197

Product a1 (mm) a2 (mm) c (mm) qty. stop anchors Material
DA 320 KF2 corner DIN 180 170 5 - PVC-P / PVC-NBR



Data sheets

Further information can be found in the accompanying data sheets:
deutsch
english



Series DA KFV DIN

Waterstop selection in accordance with DIN 18197

Product a1 (mm) a1 (mm) c (mm) d (mm) f (mm) qty. stop anchors Material
DA 320 KFV DIN 161 173 4 4 35 3 PVC-P / PVC-NBR



Data sheets

Further information can be found in the accompanying data sheets:
deutsch
english

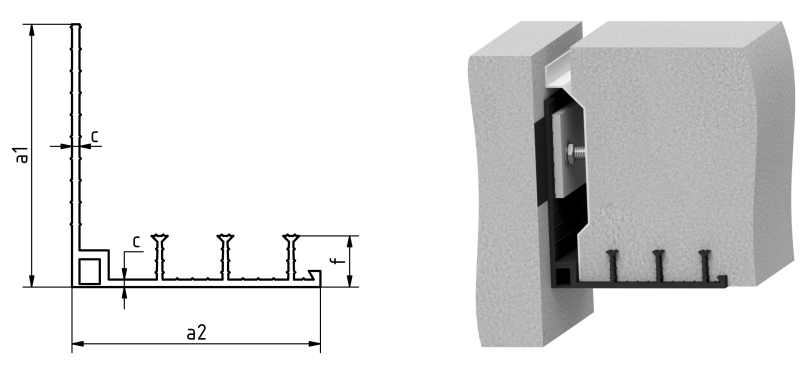

Series DA KI DIN

Waterstop selection in accordance with DIN 18197

Product a1 (mm) a2 (mm) c (mm) f (mm) qty. stop anchors Material
DA 320/35 KI DIN 180 170 5 35 3 PVC-P / PVC-NBR



Data sheets

Further information can be found in the accompanying data sheets:
deutsch
english
