Expansion waterstops, external in accordance with DIN 7865

Series AM

Waterstop selection in accordance with DIN 18197

Product a (mm) b (mm) c (mm) f (mm) qty. stop anchors Material
AM 250 250 100 6 31 4 SBR / EPDM
AM 350 350 100 6 31 6 SBR / EPDM
AM 500 500 150 6 31 8 SBR / EPDM



Data sheets

Further information can be found in the accompanying data sheets:
deutsch
english

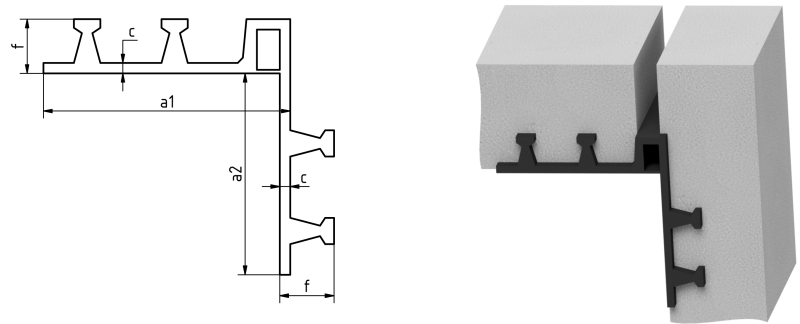

Series AM corner A

Waterstop selection in accordance with DIN 18197

Product a1 (mm) a2 (mm) c (mm) f (mm) qty. stop anchors Material
AM 250 corner A 137,5 112,5 6 31 4 SBR / EPDM
AM 350 corner A 187,5 162,5 6 31 6 SBR / EPDM



Data sheets

Further information can be found in the accompanying data sheets:
deutsch
english

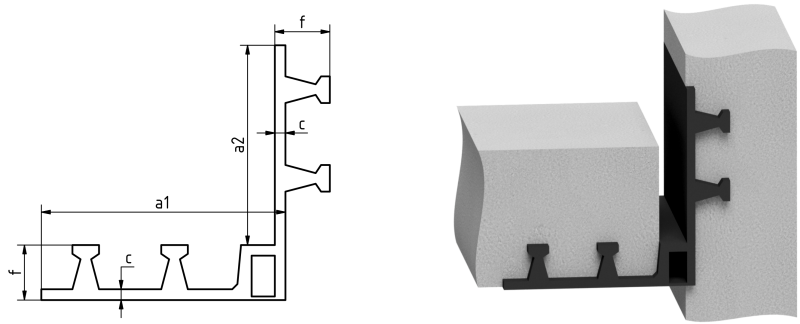

Series AM corner W

Waterstop selection in accordance with DIN 18197

Produkt a1 (mm) a2 (mm) c (mm) f (mm) qty. stop anchors Material
AM 250 corner W 137,5 112,5 6 31 4 SBR / EPDM
AM 350 corner W 187,5 162,5 6 31 6 SBR / EPDM



Data sheets

Further information can be found in the accompanying data sheets:
deutsch
english



Series AM S

Waterstop selection in accordance with DIN 18197

Product a (mm) b (mm) c (mm) d (mm) f (mm) h (mm) qty. stop anchors Material
AM 500 S 500 45-102 6 8 31 72 8 SBR / EPDM



Data sheets

Further information can be found in the accompanying data sheets:
deutsch
english
