Construction waterstops, external in accordance with DIN 18541

Series AA

Waterstop selection in accordance with DIN 18197

ProduCt a (mm) b (mm) c (mm) f (mm) qty. stop anchors Material
AA 240 DIN 240 90 4 20 4 PVC-P / PVC-NBR
AA 320 DIN 320 100 4 25 6 PVC-P / PVC-NBR
AA 500 DIN 500 120 5 25 8 PVC-P / PVC-NBR
AA 240/20 DIN 240 90 4 24 4 PVC-P / PVC-NBR
AA 240/30 DIN 250 115 5 35 4 PVC-P / PVC-NBR
AA 320/30 DIN 330 105 5 35 6 PVC-P / PVC-NBR
AA 500/30 DIN 500 125 5 35 8 PVC-P / PVC-NBR



Data sheets

Further information can be found in the accompanying data sheets:
deutsch
english

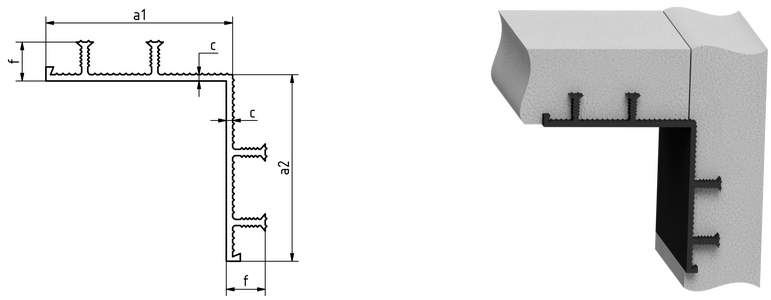

Series AA corner A

Waterstop selection in accordance with DIN 18197

ProduCt a1 (mm) a2 (mm) c (mm) f (mm) qty. stop anchors Material
AA 240 DIN corner A 120 120 4 25 4 PVC-P / PVC-NBR
AA 320 DIN corner A 165 165 4 25 6 PVC-P / PVC-NBR



Data sheets

Further information can be found in the accompanying data sheets:
deutsch
english

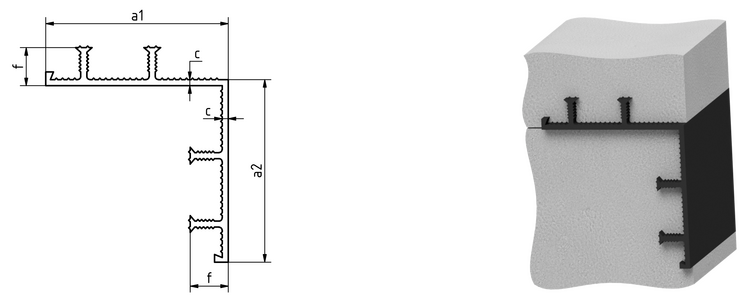

Series AA corner W

Waterstop selection in accordance with DIN 18197

ProduCt a1 (mm) a2 (mm) c (mm) f (mm) qty. stop anchors Material
AA 240 DIN corner W 120 120 4 25 4 PVC-P / PVC-NBR
AA 320 DIN corner W 165 165 4 25 6 PVC-P / PVC-NBR



Data sheets

Further information can be found in the accompanying data sheets:
deutsch
english
